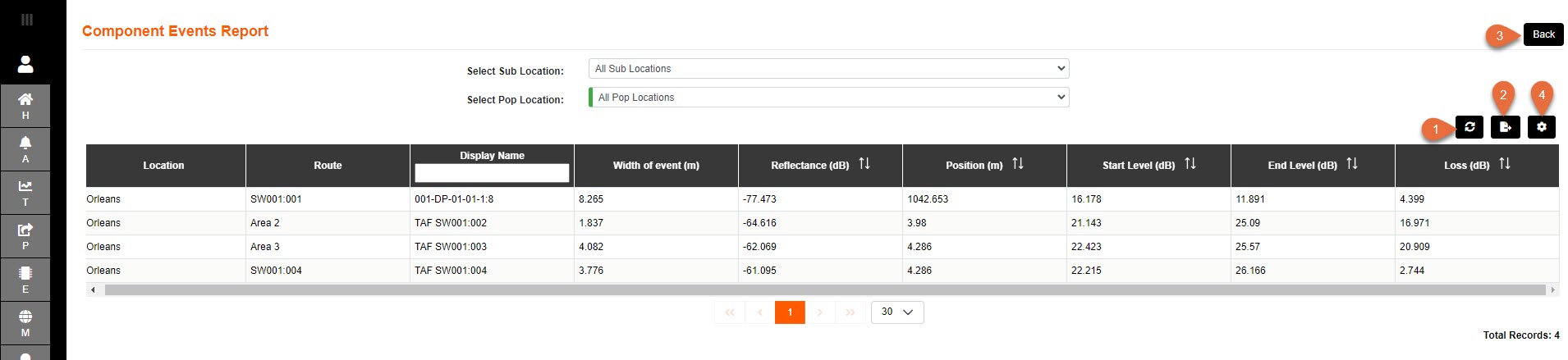

This page represents an assigned component within you network, and will display all the related information describing the trace of the component.
Display Name you have given to the component, in this example a splitter, during the set up to make it identifiable.
Width of event (m) - width, in meters, of the event trace related to the splitter.
Reflectance (dB) - the reflectance level, in decibels, of the splitters trace event.
Position (m) - the distance, in meters, where the splitters event as been assigned.
Peak Position (m) - the distance, in meters, the peak of the splitters trace event is recorded at.
Start Level (dB) - the level, in decibels, at the beginning of the splitters trace event.
Peak Level (dB) - the level, in decibels, at the peak of the splitters trace event.
End Level (dB) - the level, in decibels, at the end of the splitters trace event.
Loss (dB) - the drop in level, in decibel, from the start and end of the splitters trace event.
POP Location of the POP where the OTDR can be found.
1.Refresh will update the table with any new data.
2.The Import/Export button allows you to export all the data or the page, to an external file.
3.Press Back to return to the previous page.
4.The Advanced Table Settings presents a pop up to select table columns.
