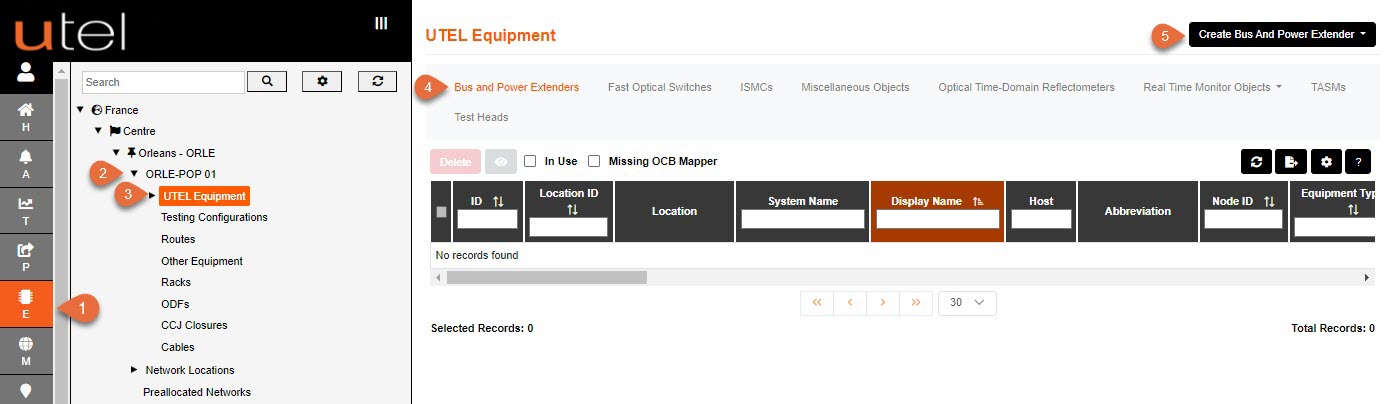

1.Select Element Manager from the Menu bar.
2.Find the POP Site you wish to work on in the Tree and expand the options within it by selecting the arrowhead to the left of its name.
3.Click on UTEL Equipment in the Tree
4.Select the Bus and Power Extender tab in the main window.
5.Click the Create Optical Power Tray button.

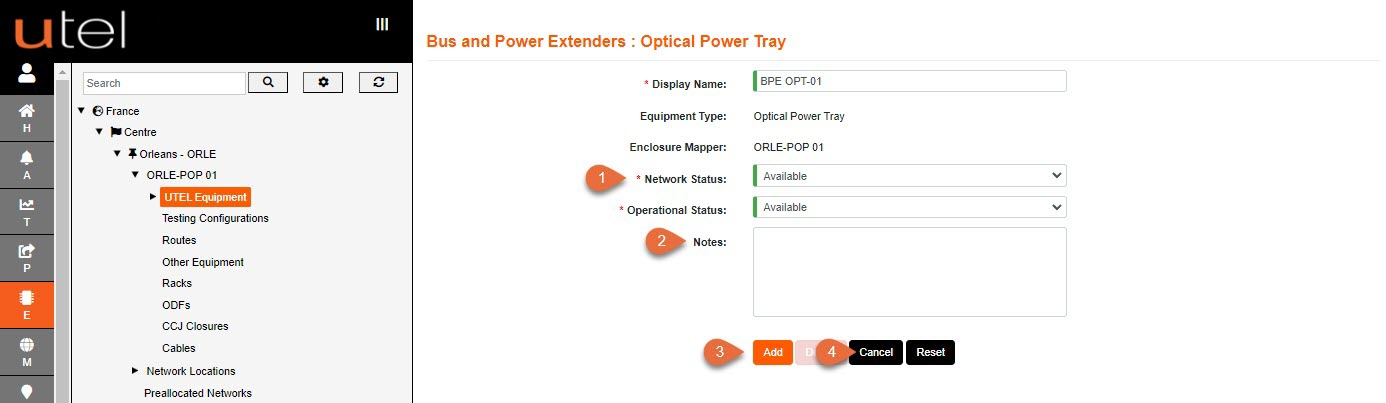

1.Choose the appropriate Network and Operational Status from the drop-down menus.
2.Add any Notes if required.
3.Once completed, to save this entry click Add. You will now see it displayed in the Tree.
4.To move away from this page without saving, select Cancel.
