Before a Test is allowed to proceed, the Route to be tested must be In Service.

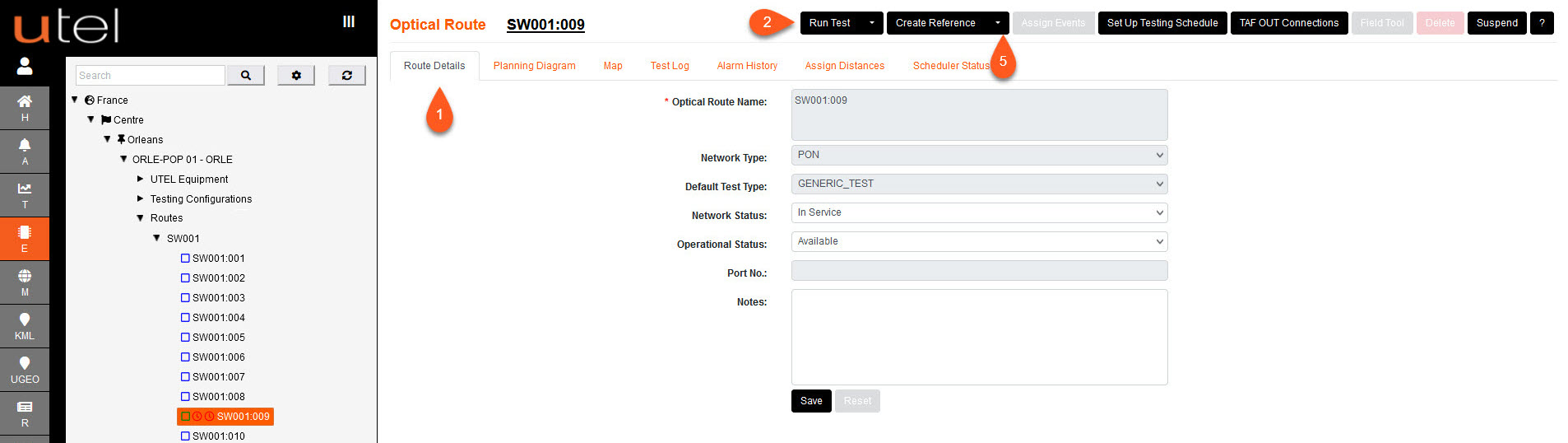

1.When you select your route, the Route Details is viewed on a tab for each route.
2.When you are ready to run a test then click on the Run Test button.
3.Select the Test you would like to run, or just Run the Test and the default set up on the Route Details tab will be selected.
If the test is the first one run on a particular Test Type the default is that a Reference Test is run.

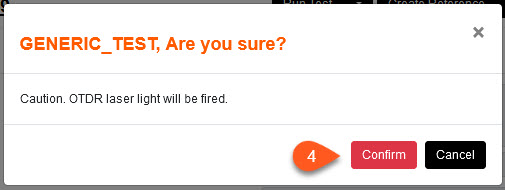

4.Select Confirm and the test will run.
5.If you want to create another Reference Trace then select Create reference and choose the type of test you require as above.
If this is the first test on the route, it will come back with a Reference Trace.
This is the model trace of the network and will be compared with future traces to detect changes.

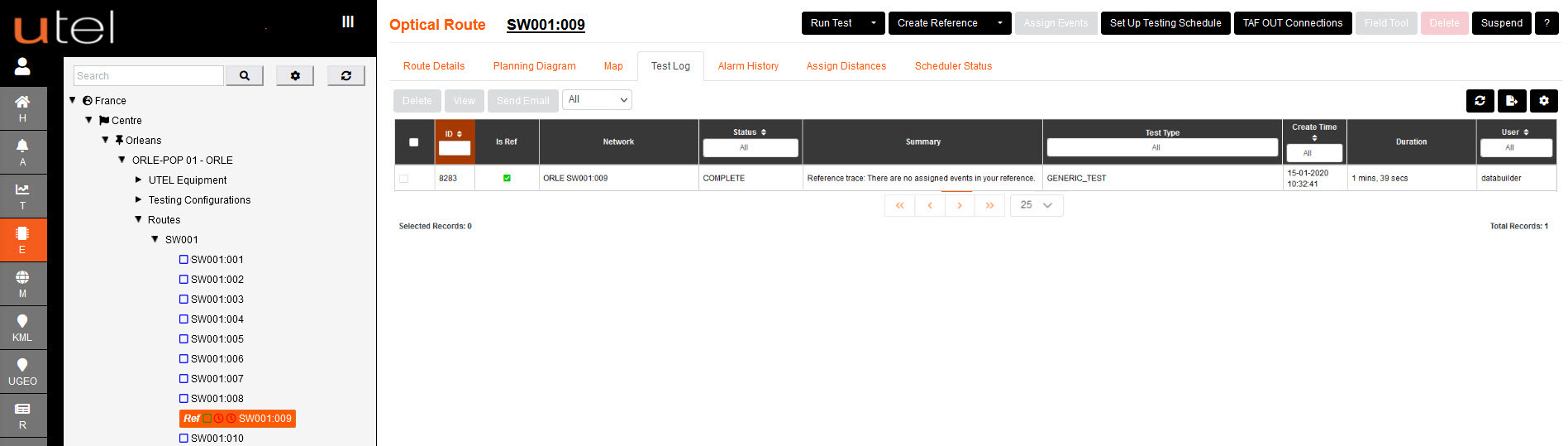

When the Test has completed a screen will open up on the Test Log.
Each route allows more than one test to be run, which is added to the Routes test list in the Elements Manager and also the Testing tab.
Refer to the Testing Guide for further details, including assigning events.
