The routes required path needs to be manually set between the OLT and the TAF.
Select the POP of the required route in the tree.

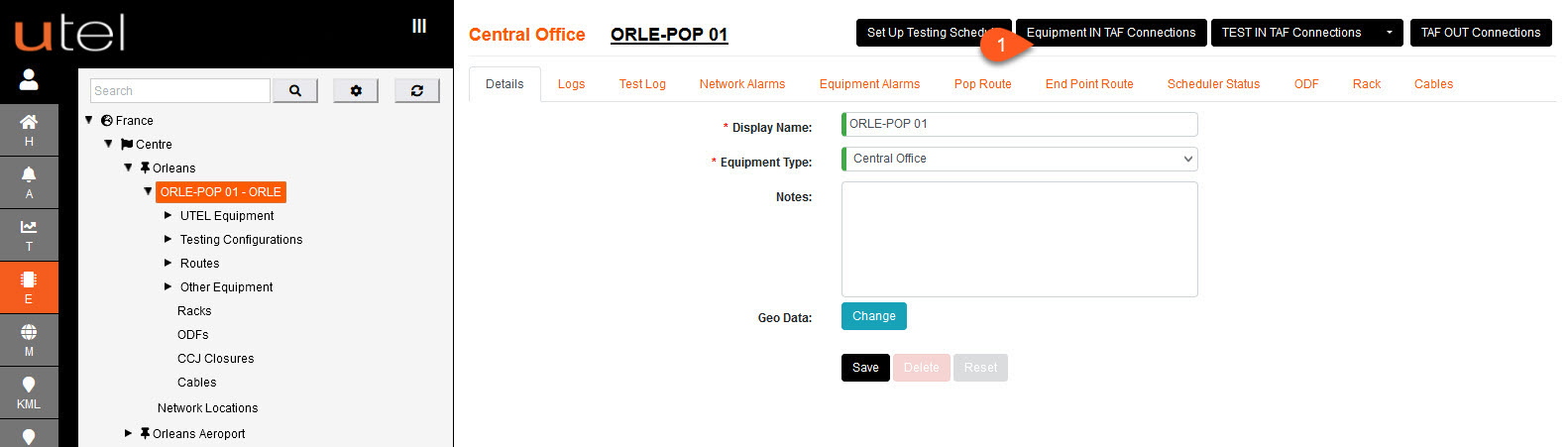

1. Click on the Equipment IN TAF Connections button.

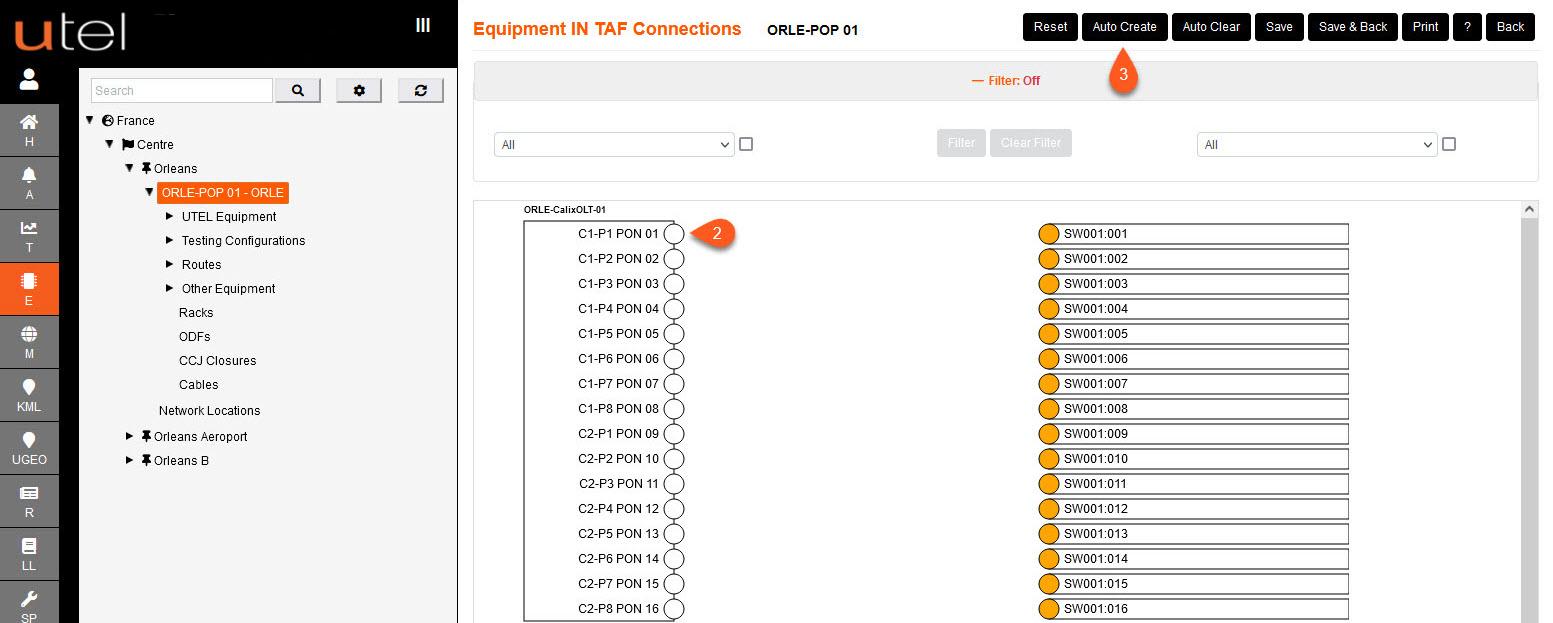

2. Using the left mouse - select the OLT port to be connected and drag to the desired Switch port.
3. Alternatively you can select 'Auto Create' button to connect up all the OLT, and Switch ports, 1-to-1.

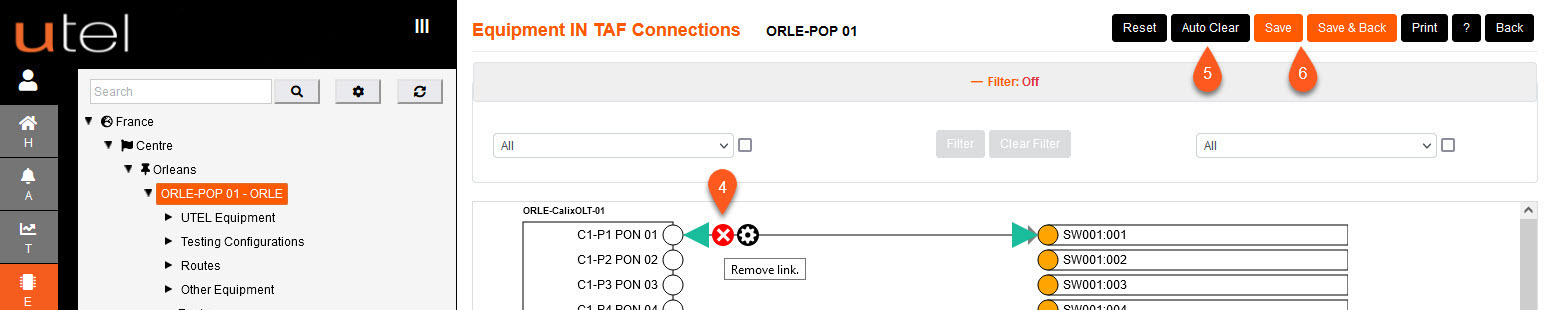

4. If you would like to remove the connection - hover over the line and a red cross will be presented.
Click on the red cross and the line will be removed.
5. Alternatively you can select the 'Auto Clear' button.
6. Click on Save, or Save & Back, once you have finished connecting up the paths you require.
