The routes path needs to be manually set between the TAF and the cables' Patch Cassette.
Select the POP of the required route in the tree.
1.Select the TAF Out Connections button, or right click on the POP in the tree,
2.Click on Save once you have finished connecting up the paths you require.
3.Auto Create will connect all available one-to-one paths (if no connections have been made), and Auto Clear will clear all free connections.
4.Any ports that are green indicates that those routes are already In Service and no connections can be made.
5.It is able to delete links made by clicking the red cross. To access this just hover over the patch cord.
When a route is already In Service the user will need to Suspend the route to modify it.
The option is presented in the Connection Screens for ease of use.
1. Adding (or removing) connection to a network connected to a route In Service
2. Select Save and a message is presented indicating the route is In Service
3. A 'Suspend' button is presented. Select it and then Save the connection.
That same button will have 'Set In Service' to reset it.

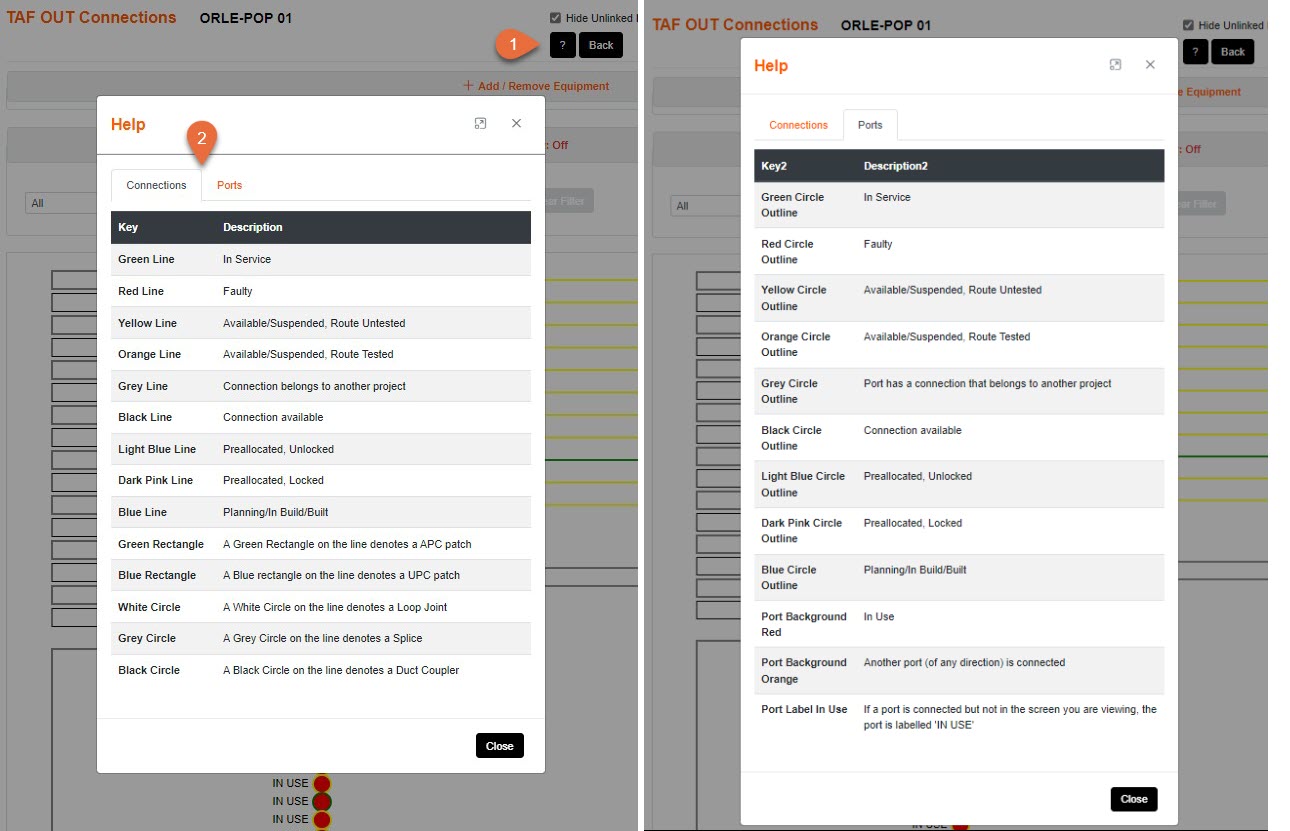

1. A helpful guide to Connection Screen colouring is found via the ? button.
2. The tabs have both Connection and Ports to view.
