Within Element Manager, select the Test Configuration in the Tree.
To edit, simply change the details displayed on the main screen as required.
Any amendments made will automatically turn the Save button from black to orange. Select Save.
To delete a Test Configuration is to remove all connections between the OTDR and Switches, as well as the routes.
To delete, you must ensure there is no further equipment associated with that component.
For example, if you wish to delete an OTDR, you must first delete the Test Configuration and the Switches before you can delete the OTDR itself.
If there are existing layers within it, then the Delete button will not be displayed.

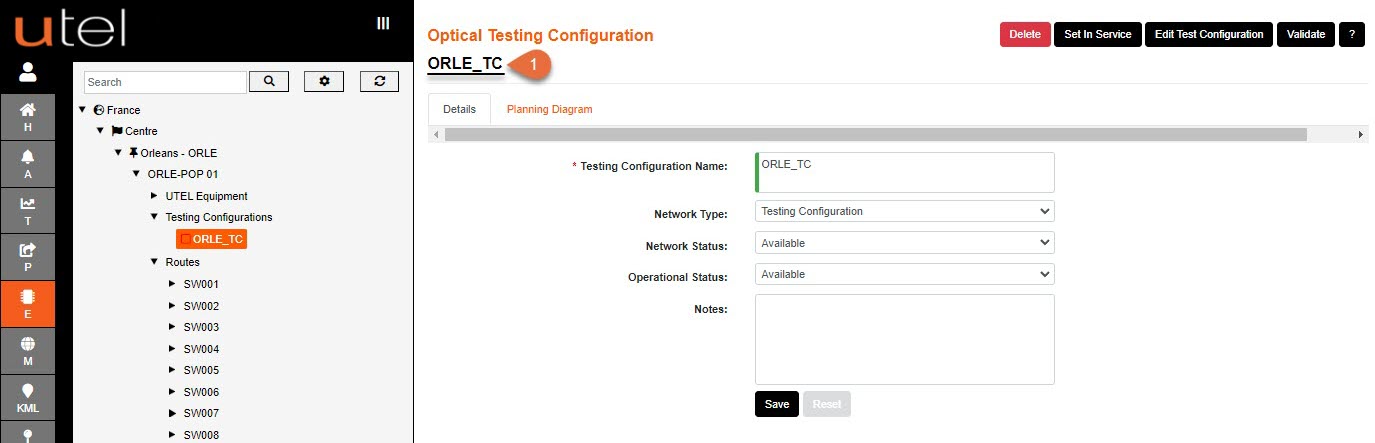

1. Click on the Test Configuration name to see associated items.
Remember to delete the components in reverse order to installation.
This process avoids any accidental (and potentially extremely time-consuming to rebuild!) deletions.

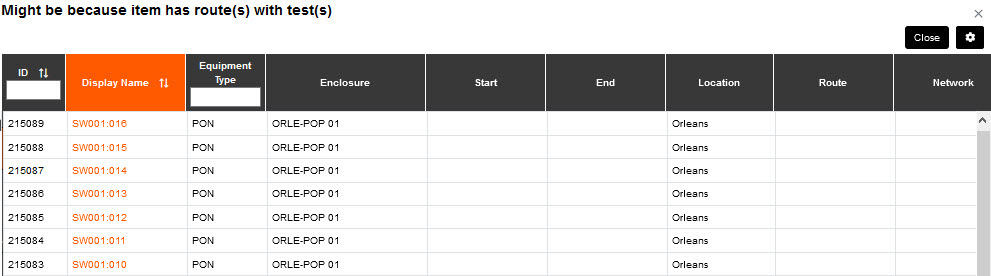

The items that is preventing the deletion is presented in a selectable table for ease of navigation.

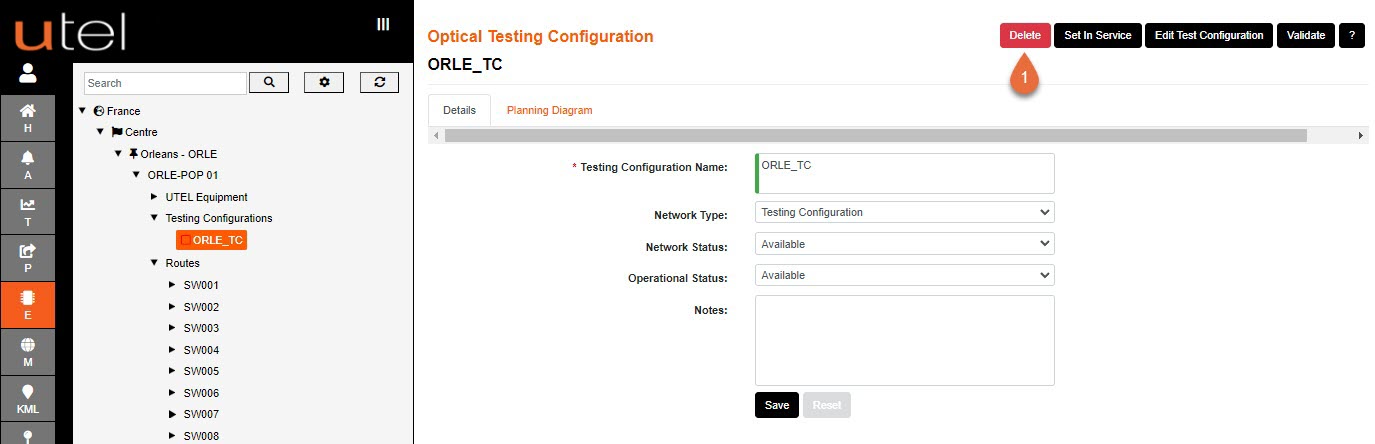

2. Once all associated with the Test Configuration is cleared, select Delete. All routes will automatically be deleted too.
