Test details for all routes can be viewed in Testing. |
The results of tests that have been carried out will appear in Testing, although the actual testing is done in Element Manager. This is covered later in the guide.
The tests can also be accessed by the bar at the bottom of the screen:

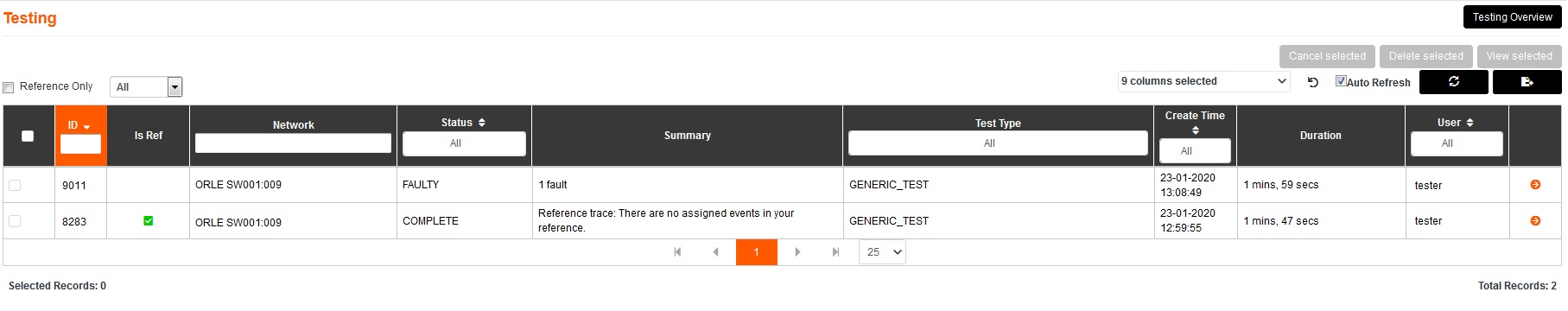

Each test that has been done will have its own row in the table, with its own set of unique information. Clicking on a test will show you all the information on that specific test, also allowing you to run a test on the route and assign events. This is covered in the "Routes" section.
1.You can tick the box to highlight the row. When a box is selected, the Delete Selected button becomes available and will remove the test from the records.
2.ID is given to each individual test to help you identify your test. The Filter allows you to find a specific ID and using the arrows will change the order that the ID is given.
3.If the test was a Reference Trace, a tick in a box will appear in green. This is the model trace of the network and will be compared with future traces to detect changes.
4.The network location of the route tested is given under Network, the Filter allows you to narrow down the list as you type in network name.
5.The Status indicates whether the test had completed or failed, the order in which the tests appear can be changed to gather completed or failed tests by using the arrows.
6.Summary provides important information on the result of the test, it will notify you of whether there are faults, and where they have been located.
7.The Test Type specified by the user for the test.
8.The time and date in which the test was created is provided under Create Time, the order in which the tests were taken can be change using the arrows.
9.Test Duration will vary depending on the complexity of the test.
10. Details of the User making the test is given. The filter allows you to search for tests created by a specific user and the arrows allow you to change the order of the user who made the test.
11. You can open the tests in an external program or save them in a document by pressing Export CSV. Your computer will give you an option to select "Browse" to open with an external program, or to "Save File" which will save the file onto your computer as a CSV file. Select an option and press "OK". Next to export is the Refresh button which allows you to load any new entries.
12. The amount of tests per page is shown at the bottom of the table, the amount of tests shown can be increased of decreased using the drop down box. You can switch between the pages using the arrows.
Clicking on a test on the table, or the arrow hyperlink, will bring up a more in-depth view of that particular route test.
